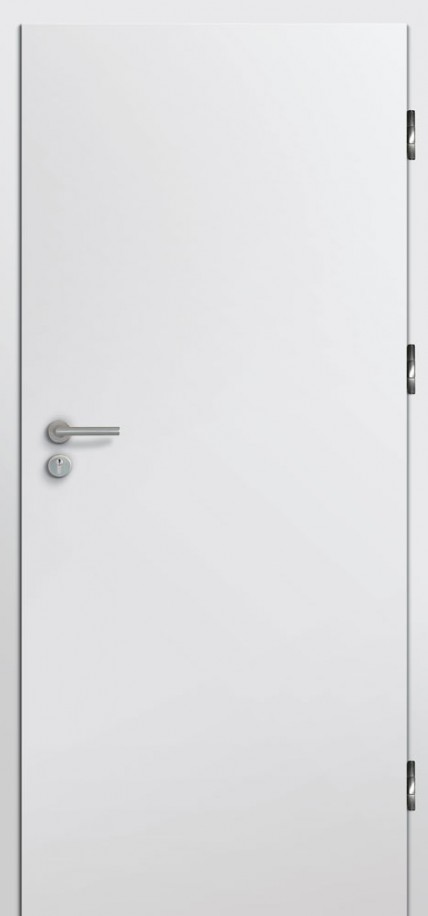

Doors for X-ray laboratories - GAMMA

Doors intended for use in public buildings (hospitals, clinics and doctors' surgeries) as well as industrial and warehouse– as internal entrance doors, being closures of openings in internal walls between the corridor and rooms in which x-ray radiation is emitted.

WING CONSTRUCTION

• Doors in the rebate system. The door leaf construction consists of a coniferous timber frame, clad on both sides with 1 mm thick HDF board 5 mm (total thickness 2 mm for the leaf). The filling consists of chipboard.

Additional information

• Mechanical class: mechanical strength requirement class 3, i.e. heavy duty acoustic insulation: 37 dB class
• door approved for sale in accordance with PN-EN 14351-2:2018

Standard equipment

• one-point mortise lock
• 3 pcs. of object hinges, angular - width „60”-„110”
• falling seal

DOOR FRAMES

• Fixed or adjustable wooden GAMMA with lead inlay
• Fixed or adjustable metal GAMMA made of 1.5 mm sheet metal with lead inlay. Powder coated as standard in white (RAL 9016 and RAL 9003), grey (RAL 7047), brown (RAL 8014), beige (RAL 1001), graphite (RAL 7024), black (RAL 9005)

OPTIONAL ACCESSORIES

• stainless steel panels affixed to the underside of the leaf or at handle height
• door closer, electric door strike, electromagnetic actuator
• width „100”
• width „110”
• two-winged doors after consultation with sales department

DOOR DIMENSIONS

• Fixed or adjustable wooden frame:
  Single leaf door: max. width: „110” - 1195 mm, max. height 2067 mm
• Fixed metal frame:
  Single leaf door: max. width: „110” - 1197 mm, max. height 2068 mm
• Regular metal frame:
  Single leaf door: max. width: „110” - 1217 mm, max. height 2078 mm
  Double leaf doors are manufactured to individual design
