ISOLA

ISOLA – internal doors for garages

Intended for use in construction as internal doors, serving as closures for openings in internal walls between rooms with different air temperatures, e.g. garages. Doors manufactured in accordance with the PN-EN 14351-2:2018 standard.

THERMAL TRANSMITTANCE COEFFICIENT Ud=1.3 [W/m²*K]

solid structural frame made of laminated pine wood
thermal insert as filling
external cladding made of HDF boards
drop-down seal

REBATED SYSTEM

single-point lock with 72 mm spacing for WB profile cylinder or WK key, in silver color
hinge type K – for DIN system frame (“60”-“80” – 2 pcs., “90” – 3 pcs.), in silver color
hinge type M – for metal frame (“60”-“80” – 2 pcs., “90” – 3 pcs.), in silver color

NON-REBATED SYSTEM

magnetic lock for WB profile cylinder (85 mm spacing) or WK key (90 mm spacing), in silver color
concealed hinge DUO in satin nickel color (“60”-“80” – 2 pcs., “90” – 3 pcs.)

FRAMES

AQUA DIN (rebated system) and AQUA DIN DUO (non-rebated system)
FIXED METAL and ADJUSTABLE METAL (rebated and non-rebated system)

Características técnicas

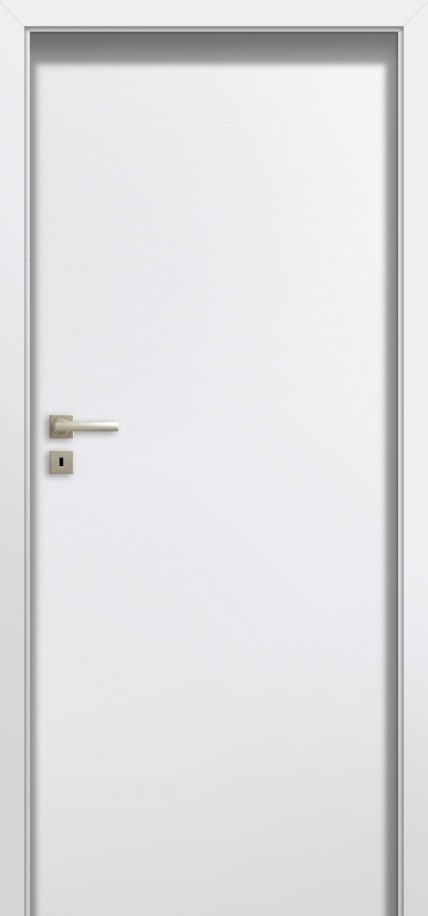

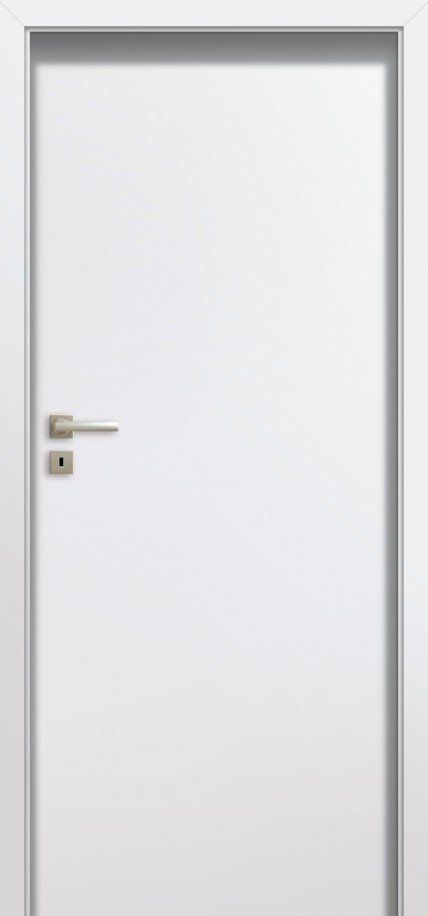

Modelos disponibles	W00
Acabados	UNI MAT PLUS, VENEERED, LAMINATED CPL, LAMISTONE CPL, UNI MAT PLUS, SILKSTONE, VENEERED, LAMINATED CPL, ECO TOP, SILKSTONE, PAINTED, LAMISTONE CPL, HIGH TOP, ECO TOP
Colores	c58, c272, c50, c61, c171, c58, c54, c50, c52, c171, c62, c54, c264, c52, c263, c62, c33, c264, c93, c263, c93, c37, c33, c38, c40, c170, c37, c46, c38, c40, c46, c259, c260, c170, c252, c259, c251, c260, c201, c252, c176, c251, c175, c201, c28, c176, c26, c175, c24, c28, c168, c26, c365, c24, c262, c168, c261, c365, c203, c262, c174, c261, c173, c203, c167, c174, c166, c173, c19, c167, c18, c166, c17, c19, c16, c18, c181, c17, c292, c16, c209, c181, c70, c292, c71, c209, c72, c70, c73, c71, c74, c72, c75, c73, c84, c74, c85, c75, c87, c84, c88, c85, c182, c87, c8, c88, c5, c182, c8, c91, c134, c272, c61, c5, c250, c371, c91, c249, c134, c248, c250, c267, c249, c266, c248, c265, c267, c281, c266, c280, c265, c278, c281, c277, c280, c276, c278, c275, c277, c274, c276, c273, c275, c370, c274, c369, c273, c368, c370, c297, c369, c296, c368, c295, c297, c294, c296, c380, c295, c379, c294, c378, c380, c377, c379, c383, c378, c382, c377, c381, c383, c298, c382, c299, c381, c300, c298, c375, c299, c376, c300, c374, c375, c373, c376, c374
