Frameless sliding system

Cassette system for single-leaf doors, without frame and cover strips

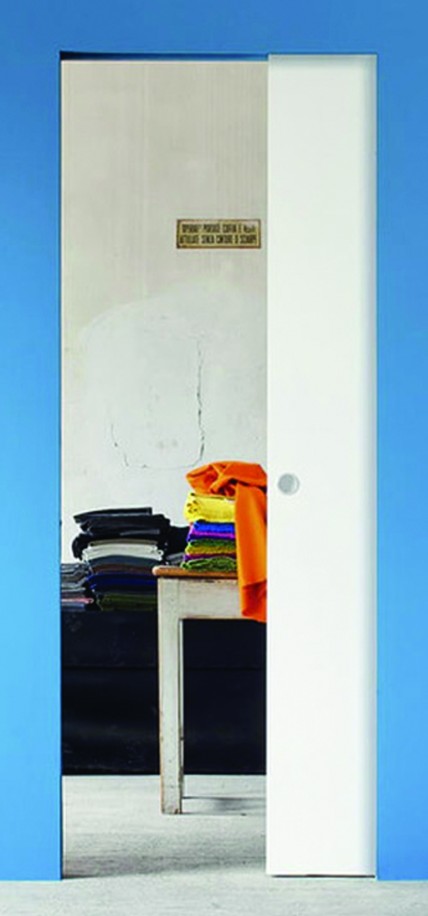

The frameless sliding system door is an innovative solution where the door leaves are retracted into the wall, eliminating the need for a frame and fascia ties. The system is suitable for 100mm thick walls and can be installed in both plasterboard and solid brick walls. Included with the door, the customer receives all necessary accessories and features for installation and leaf adjustment, eliminating the need to purchase additional components.

The Syntesis Line system is a cassette for sliding doors that retract into the wall, which does not require the use of masking strips or a wooden frame finish. This design allows the door panel to be placed discreetly within the cassette, creating a modern look and utilising the latest technology.

ECLISSE SYNTESIS LINE CASSETTE DEDICATED TO FLAT SASHES (DOES NOT APPLY TO GLAZED SASHES)

SURCHARGE FOR ADAPTATION OF THE SASH TO THE SYNTESIS LINE CASSETTE TO THE SASH PRICE +100/123.00

Creating a modern room design

The Syntesis Line skirting board has been designed with minimalist interiors in mind, following the ‘less is more’ principle. It integrates perfectly with its surroundings and, when combined with the Syntesis Battiscopa skirting board, gives the effect of continuity to the entire wall surface.

It is supposedly there but it is not....

The design of the cassette allows the door panel to be mounted discreetly, creating a unique colour scheme for the room using the same colour for the wall and the door leaf. The door becomes almost invisible, does not attract attention and does not dominate the interior.

CASSETTE DIMENSION FOR SINGLE-LEAF DOORS

door width	TRANSITION LIGHT A X H	B	EXTERNAL DIMENSIONS C x H1	SASH DIMENSIONS
door width	TRANSITION LIGHT A X H	B	EXTERNAL DIMENSIONS C x H1	LP	HP
„60”	600 x 2048	750	1400 x 2108	625	2040
„70”	700 x 2048	850	1600 x 2108	725	2040
„80”	800 x 2048	950	1800 x 2108	825	2040
„90”	900 x 2048	1050	2000 x 2108	925	2040
„100”	1000 x 2048	1150	2200 x 2108	1025	2040

WALL THICKNESS = DS	INTERNAL DIMENSIONS = VS	PROFILE = K
100	54	75 single g/c board

LEGEND

A - Transition light	N - Sash width
B - Cassette pocket dimension	HP - Sash height
C - Total cassette width	DS - Total cassette thickness with 100 mm g/k board
H - Passage light height	VO - Internal cassette space 54 mm
H1 - Total height of the cassette	K - 75 mm g/k profiles

Características técnicas

Modelos disponibles	00
Acabados	HIGH TOP, ECO TOP, LAMISTONE CPL, PAINTED, SILKSTONE, ECO TOP, LAMINATED CPL, LAMISTONE CPL, VENEERED, SILKSTONE, UNI MAT PLUS, LAMINATED CPL, VENEERED, UNI MAT PLUS
Colores	c189, c188, c187, c190, c188, c191, c189, c193, c190, c194, c191, c187
