PRESTIGE

EXTERIOR DOORS PRESIGE

SASH CONSTRUCTION:

Door in rebated system with fanlight in one frame. Sash structure built of pine wood frame, modern door design with entablature. The surface of the wings painted with opaque or transparent paints. The filling is a thermal insulation layer. Thickness of the leaf 80 mm.

Heat transfer coefficient: Ud=0,88 W/m2K*.
Heat transfer coefficient: Ud=0,83 W/m2K**
Burglar resistance class EN 1627 RC2

*for doors with fanlight of width "150"

**for doors of width "90"

STANDARD EQUIPMENT (INCLUDED IN THE PRICE):

oak frame 100x70 mm, in black 9005 color

black oak threshold with protective aluminum profile

anti-balance system ("French rebate")

double gasket system (around the perimeter of the sash and frame)

anti-intrusion triple glazing with a warm TGI frame (in the fanlight) in the standard choice of transparent or tinted glass in gray, brown or green. Glazing package coefficient Ug=0.5 W/m2K according to EN 674.
Optional: mirastar (Venetian mirror), tinted, reflective, ornamental glass ( pattern V01)

screw hinges adjustable in three planes in silver color - 4 pcs, hinge covers in black color

MACO slatted multi-point (2 bolts, 2 hooks, master cylinder), automatically locked without a key, lock with day/night function, day function, which can be activated by moving the sliders on the lock slats allows keyless opening of the door from the outside

55G/50 in black, key related security class 6, attack resistance class D

Antaba Amsterdam hardware from the outside, Solid Solo handle from the inside - set in black

opening to the outside

Características técnicas

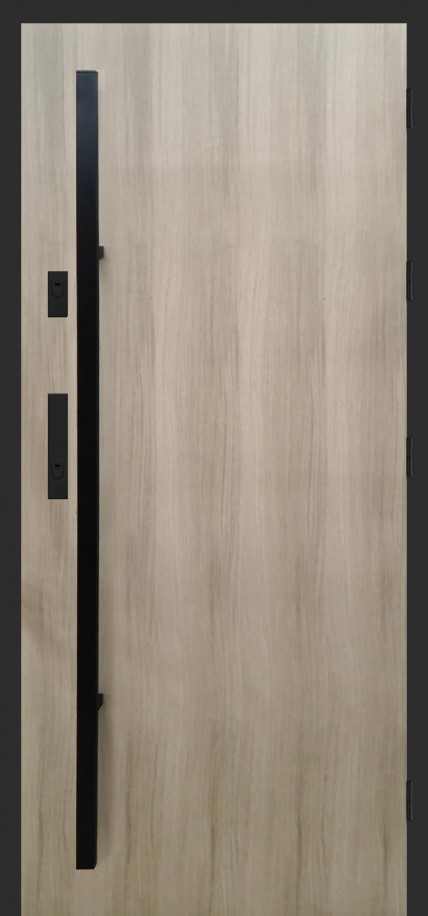

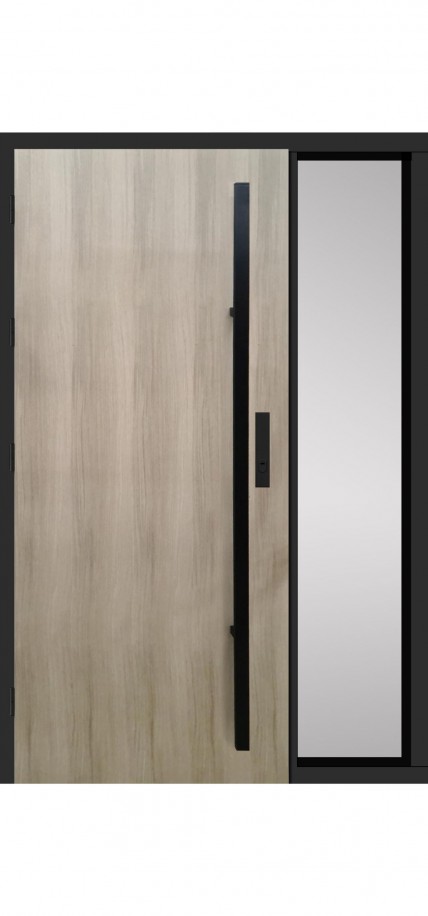

Modelos disponibles	V0W, V00
Acabados	COVERING PAINTS
Colores	c348, c316, c242, c246, c359, c337, c339, c358, c342, c309, c307, c244, c243, c360, c361, c312, c336, c314, c357, c304, c350, c351, c318, c320, c352, c322, c353, c354, c324, c355, c356, c327, c329, c331, c357, c358, c333, c359, c305, c360, c306, c361, c308, c362, c310, c363, c241, c364, c313, c334, c315, c335, c317, c336, c319, c311, c337, c338, c335, c338, c356, c241, c242, c246, c244, c243, c350, c351, c352, c353, c354, c355, c362, c363, c364, c334, c340, c349, c321, c341, c323, c339, c325, c340, c326, c341, c328, c342, c330, c343, c332, c344, c346, c345, c344, c343, c347
