ARGALI

EXTERIOR DOORS ARGALI

SASH CONSTRUCTION:

Doors in rebated system. The leaf structure is built of a pine wooden frame, reinforced with a steel profile, clad with two wood panels covered with natural oak veneer. The surface of the panels is painted with opaque or transparent paints. The filling is a thermal insulation layer. On the surface of the leaf on the external side application of stainless steel INOX or black. Thickness of the leaf 81 mm.

Heat transfer coefficient: Ud=0.78 W/m2K*
anti-burglary class RC2

*For door width "90" in model W00, ov. pine

STANDARD EQUIPMENT (INCLUDED IN THE PRICE):

100x70 mm frame (pine frame: opaque paints; oak frame: transparent paints)

oak threshold with aluminum profile

anti-theft system ("French rebate")

double gasket system (around the perimeter of the sash and frame)

double-chamber glazing package with Chromatech Ultra warm frame with anti-burglary class P4
optional: mirastar (Venetian mirror), tinted, reflective, ornamental glass (does not apply to W00 design)

screw hinges adjustable in three planes in silver - 4 pcs.

FUHR four-point slat lock (2 bolts and 2 hooks) operated by a handle on two inserts, locked by
lifting the handle, top inserts independent, spacing 92 mm

optional cylinder: two inserts upper 55/50 lower 55G/50 (with knob), security related to the key class 6,
resistance to attack class D

optionally: handle GARDA (handle + door knob) on the long arm with insert protection, top escutcheon with cylinder protection

doors opening outwards

ADDITIONAL EQUIPMENT (AT AN EXTRA CHARGE):

metal appliqués in black (does not apply to W00 design)

Características técnicas

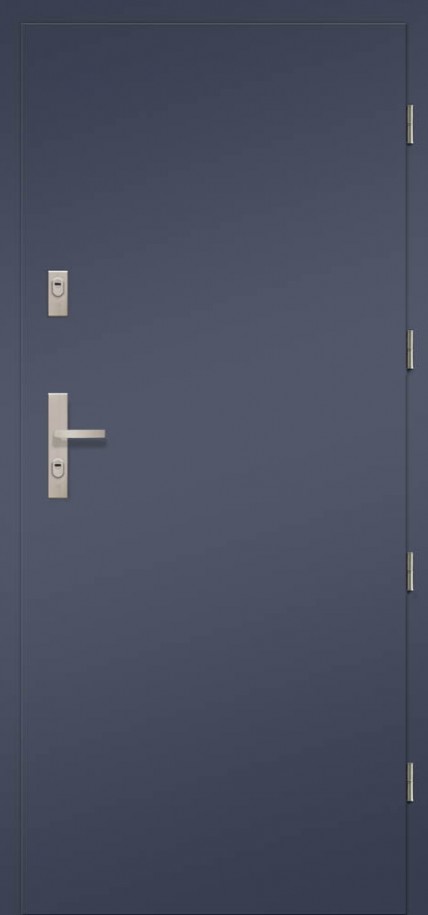

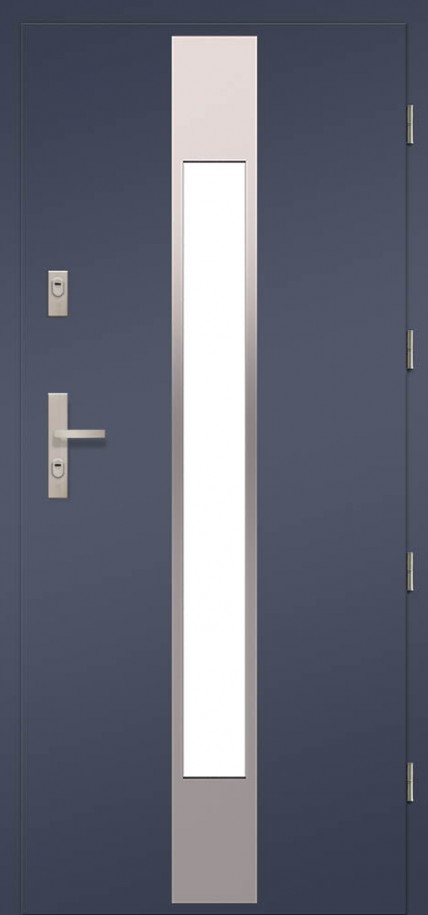

Modelos disponibles	V00, V2S, V1S
Acabados	COVERING PAINTS, TRANSPARENT PAINTS
Colores	c243, c357, c358, c360, c351, c350, c359, c241, c242, c246, c244, c352, c353, c354, c355, c356, c361, c363, c241, c364, c242, c334, c246, c335, c244, c336, c243, c337, c350, c338, c351, c339, c352, c340, c353, c341, c354, c342, c355, c343, c356, c344, c357, c345, c358, c346, c359, c317, c362, c360, c348, c361, c349, c362, c304, c363, c307, c364, c309, c334, c312, c335, c314, c336, c347, c316, c337, c318, c338, c320, c339, c322, c340, c324, c341, c327, c342, c329, c343, c331, c344, c333, c345, c305, c346, c306, c347, c308, c348, c310, c349, c311, c304, c313, c307, c315, c309, c312, c319, c314, c321, c316, c323, c318, c325, c320, c326, c322, c328, c324, c330, c327, c332, c329
