Harmony

Comment calculer le prix d’une porte et ouverture droite ou gauche.

Puertas ocultas

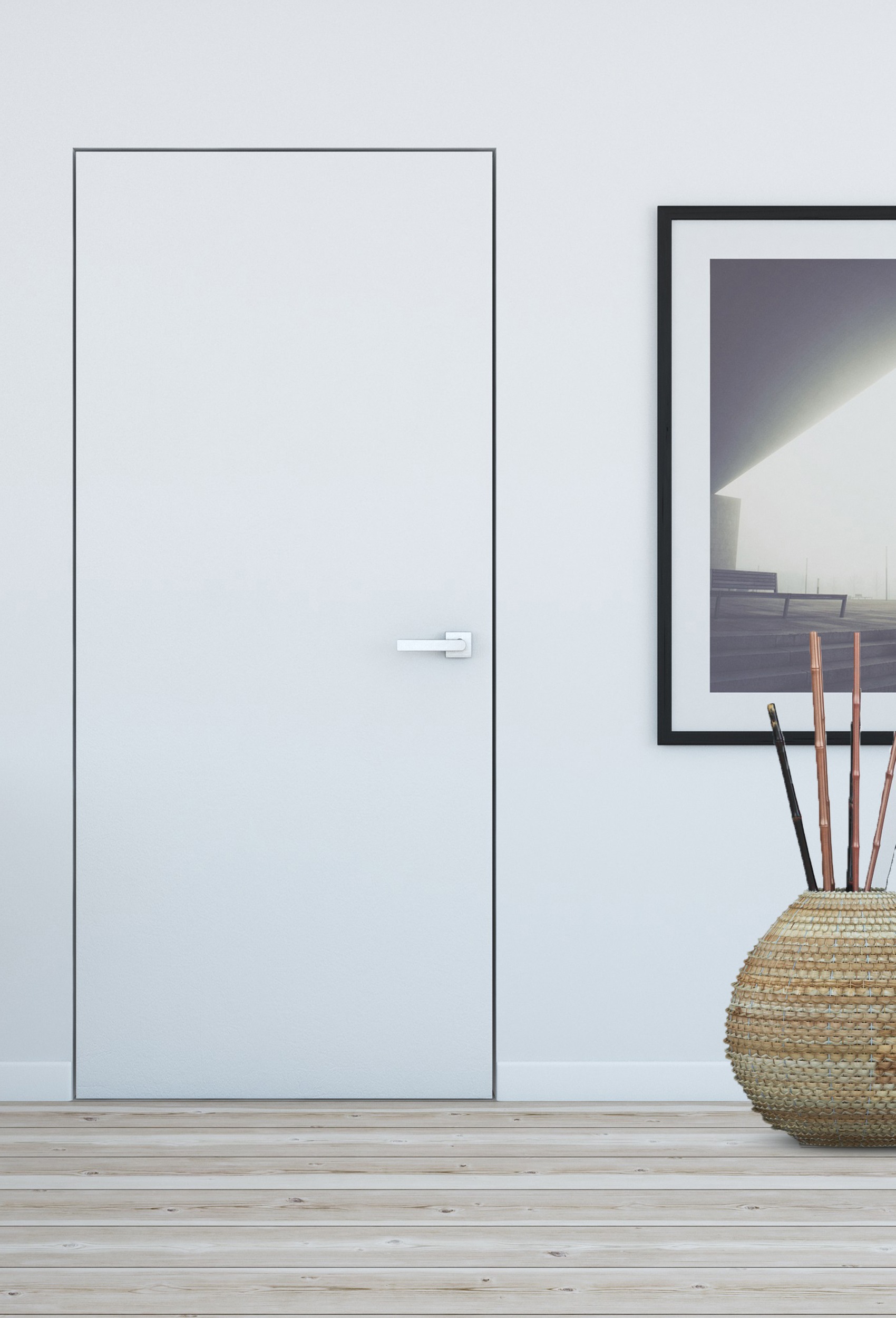

HARMONY 40 mm leaf for flush wall alignment. Softwood stile/rail, HDF both sides, honeycomb core (ODW/ODZ). Optional 4 mm thinned leaf for mirror/tile.

Included in the door price

Concealed 3-plane adjustable hinge, satin chrome
Magnetic satin lock (key / cylinder / bathroom / no keyhole)
40 mm flush leaf

Technical data

Widths 60–100; mechanical class II; Rw = 27 dB* with full board + drop seal
Height surcharges +10%…+40%; shorten every 10 mm up to 100 mm free
Leaf finishes and aluminium frame finishes per catalog grids

Dimension scheme

Ss = leaf width · Sd = outer frame width · So = structural opening. Standard Hs ≈ 2020 mm (Hd ≈ 2062 · Ho ≈ 2070). Heights +100…+400 mm on request. Harmony aluminium frame is included in the door price.

Caractéristiques techniques

Système	Harmony Hidden System
Modèles disponibles	00
Finitions	VENEERED, PAINTED
Couleurs	ven-313, ven-370, ven-424, uni-640, ven-422, primer, ven-421, ven-405, ven-404, ven-390, ven-340, primer_fondo, ven-323, ven-334, ven-312, m3-0NA, m3-0N6, m3-0N4, m3-0N3, m3-0N2, m3-0N1, m2-0ND, m2-0ML, m2-0MK, m2-0MJ, m2-0M1, m2-0M4, m2-0M7, m1-000, m1-0M6, m1-0MH, m1-0MG, m1-0M5, m1-0MF, m1-0ME, m1-0MB, m1-0MA, painted-001, cpl-834, cpl-833, cpl-863, cpl-844, cpl-821, cpl-280, cpl-227, cpl-225, cpl-222, cpl-820, silk-297, silk-295, silk-293, silk-290, silk-276, silk-230, lam-212, lam-211, lam-210, lam-234, lam-233, lam-213, lam-531, lam-289, lam-263, lam-250, lam-243, lam-242, lam-231, uni3d-672, uni3d-671, uni3d-670, uni-656, uni-655, uni-654, uni-653, uni-652, uni-651, uni-650, uni-649, uni-646, uni-645, uni-644, uni-643, uni-642, uni-641, ven-460, ven-461, ven-462, ven-463, sw-450, sw-451, sw-452, sw-453, sw-454, sw-455, sw-456, rw-470, rw-471, rw-472, rw-473
Spécifications	Leaf 40 mm / honeycomb
Classe mécanique	Class II
Isolation acoustique	Rw 27 dB*
