VERTIGO

INTERIOR DOOR VERTIGO

Elegant VERTIGO wings will be the “dot over the i” to complement fashionable designer interiors. Stylish frames break the purity of the form. High-quality painted doors will complement your space.

solid construction – wooden rail and stile set

3 - layer painting system - colour fastness for many
years

large RAL and NCS colours palette

security glass pane, white matt thickness: 6 mm

K and C type adjustable and DUO type concealed hinges

STANDARD EQUIPMENT:

white matt tempered glass, thickness: 6 mm
transparent pane cannot be used

single-point mortise lock, spacing: 72 mm (rebated system) or magnetic
mortise lock (non-rebated system), key-operated (spacing: 90 mm),
for a cylinder (spacing: 85 mm) or a bathroom lock (spacing: 90 mm)

hinges: type K – for the DIN system door frame, type C – for the
wooden door frame, type M – for the metal door frame or the

concealed DUO satin nickel (”60”-”80” – 2 pcs, ”90” – 3 pcs)

door closer is not available

BLACK collection: standard magnetic lock face plate and DUO hinges
are in the colour of black

ADDITIONAL EQUIPMENT (AVAILABLE AT AN EXTRA CHARGE):

size ”100”

recuperation trim

REVES system (version W00, W02, W03) - the door opening angle
is 87° above ZW5 range

third hinge in the door leaf:
type K, type C, type M for a width of ”60”-”80”
concealed DUO type for a width of ”60”-”80”

the DUO hinge replaced with white or black colour

rebated system BLACK collection
the lock colour replaced with black colour

bottom rail and stile set protection against excessive moisture impact
(not applicable to leaves with ventilation trim)

door lower by 50 mm (rebated system)

door lower by 55 mm (non-rebated system)

door higher by 50 mm or 100 mm
(third hinge in the door leaf is required)

ventilation trim (p. 141)

Características técnicas

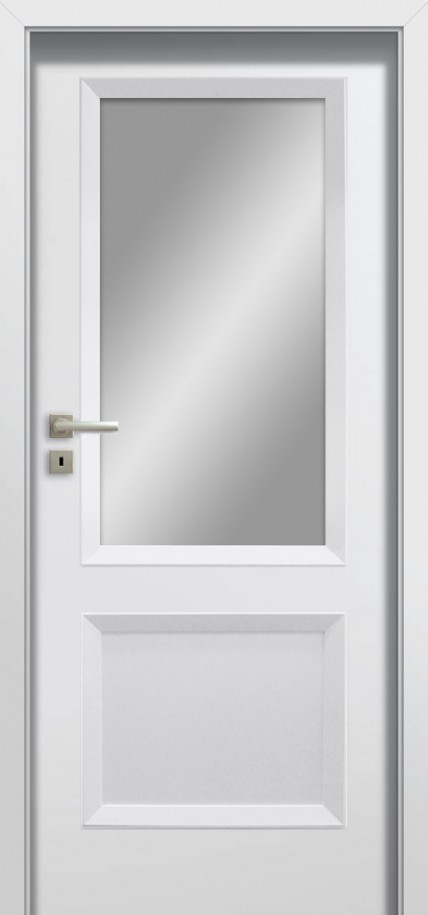

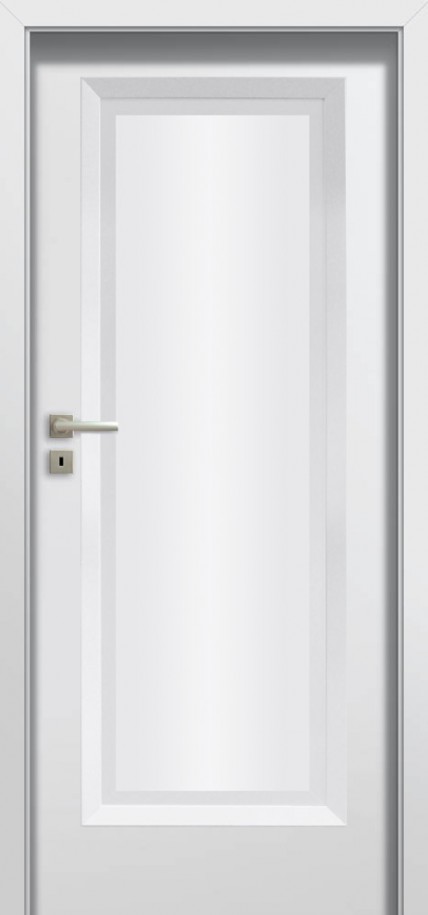

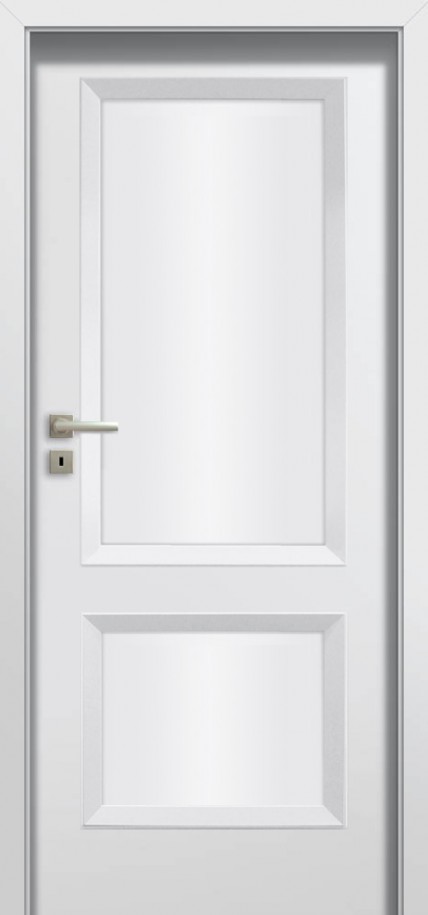

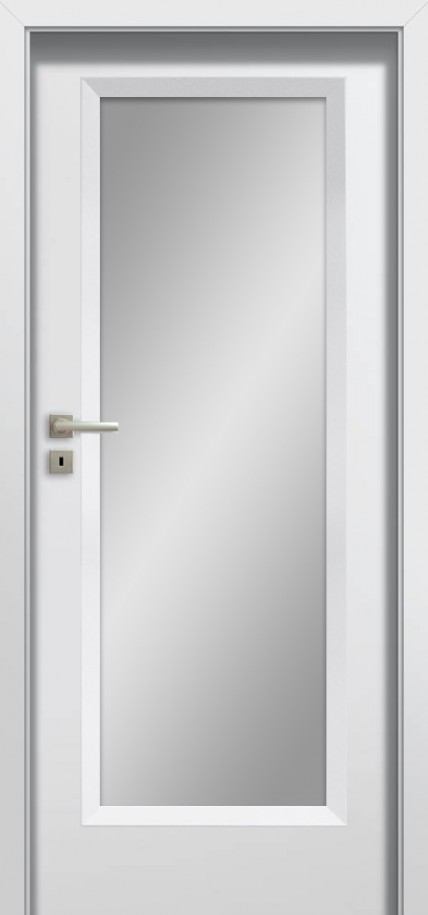

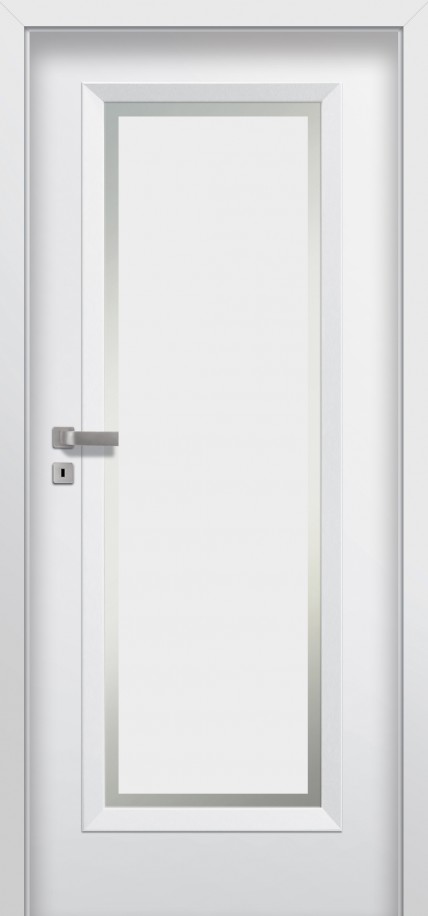

Modelos disponibles	V1SP, V2SD, V2SD, V1SP, V02, V02, 0SD, 0SD, V01, V01
Acabados	PAINTED, PAINTED
Colores	c429, c425, c429, c425, c424, c441, c439, c432, c433, c436, c436, c437, c91, c441, c440, c440, c437, c438, c424, c423, c423, c421, c421, c419, c420, c420, c419, c415, c417, c417, c415, c410, c413, c413, c91, c431, c433, c434, c434, c439, c431, c438, c432, c409, c410, c409, c298, c298, c299, c299, c300, c300, c426, c426, c375, c408, c408, c375, c376, c376, c374, c374, c373, c373, c372, c404, c372, c404, c403, c403, c371, c407, c371, c407
