MODERN

INTERIOR DOOR MODERN

Elegant MODERN doors will raise the prestige of your space's decor. You will choose chic profiled wings in solid or glazed versions. High-quality painted doors will complement your space.

solid construction – wooden rail and stile set

3 - layer painting system - colour fastness for many
years

large RAL and NCS colours palette

K and C type adjustable and DUO type concealed hinges

STANDARD EQUIPMENT:

white matt or transparent 4 mm thick glass

wooden muntins
single-point mortise lock, spacing: 72 mm (rebated system) or magnetic

mortise lock (non-rebated system), key-operated (spacing: 90 mm),
for a cylinder (spacing: 85 mm) or a bathroom lock (spacing: 90 mm)

hinges: type K – for the DIN system door frame, type C – for the
wooden door frame, type M – for the metal door frame or the
concealed DUO satin nickel (”60”-”80” – 2 pcs, ”90” – 3 pcs)

door closer is not available

BLACK collection: standard magnetic lock face plate and DUO hinges
are in the colour of black

ADDITIONAL EQUIPMENT (AVAILABLE AT AN EXTRA CHARGE):

size ”100”

recuperation trim

REVES system (version 01, 02, 05, 08)

third hinge in the door leaf:
type K, type M for a width of ”60”-”80”
concealed DUO type for a width of ”60”-”80”

the DUO hinge replaced with white or black colour

rebated system BLACK collection

the lock colour replaced with black colour

bottom rail and stile set protection against excessive moisture impact
(not applicable to leaves with ventilation trim)

door lower by 50 mm (rebated system)

door lower by 55 mm (non-rebated system)

door higher by 50 mm or 100 mm
(third hinge in the door leaf is required)

ventilation trim (p. 141)

Características técnicas

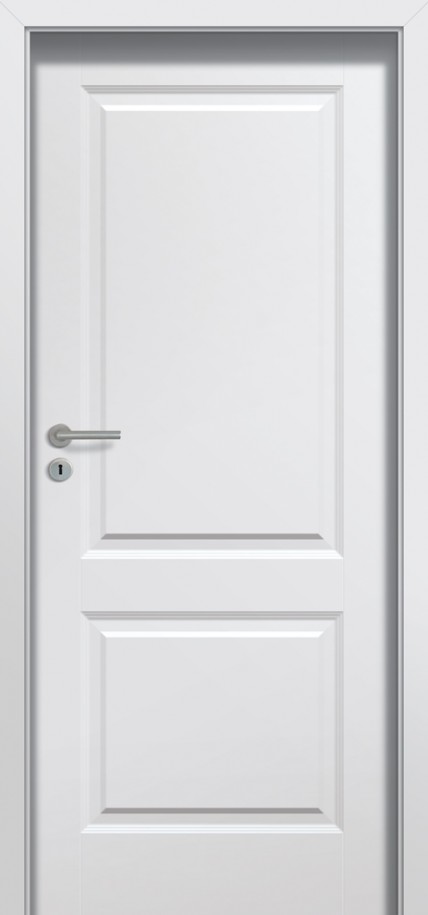

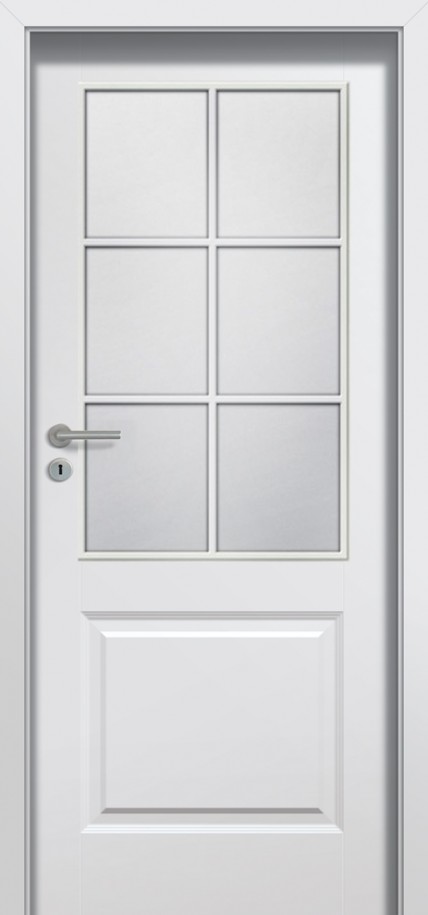

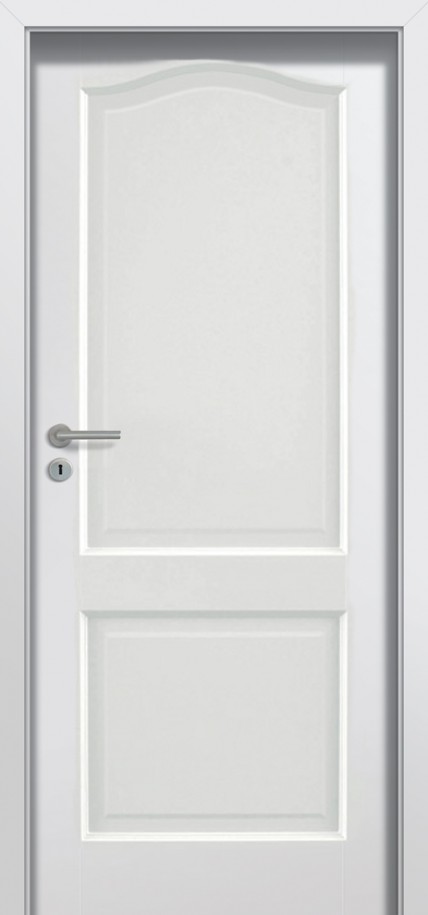

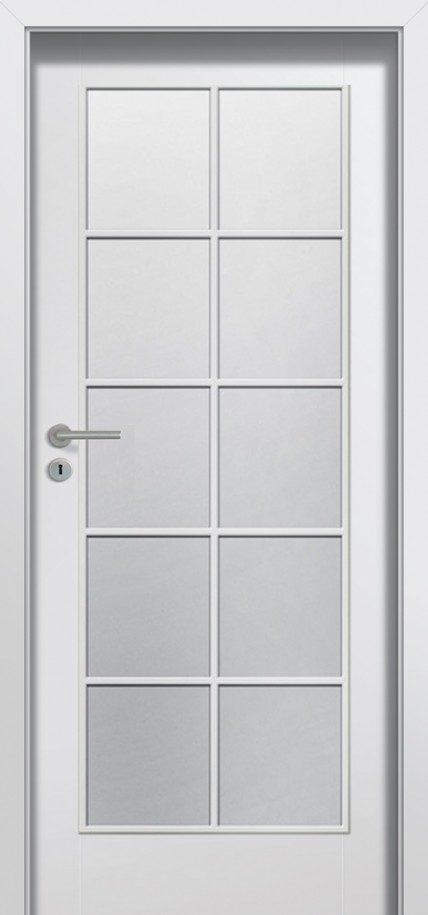

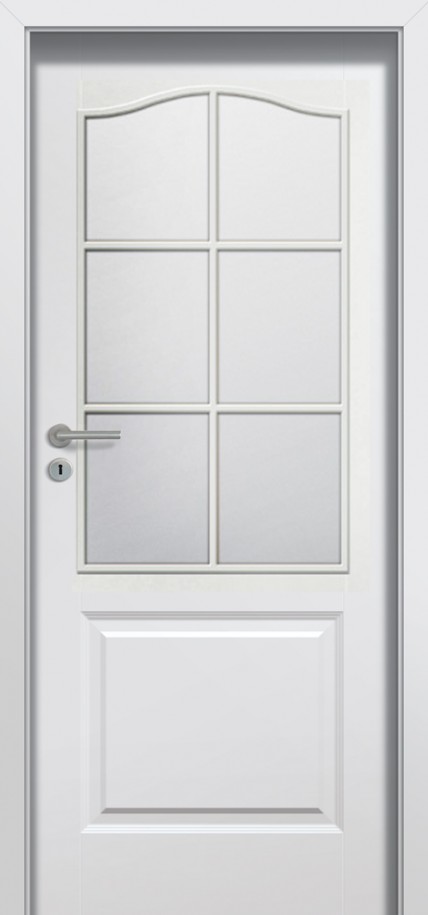

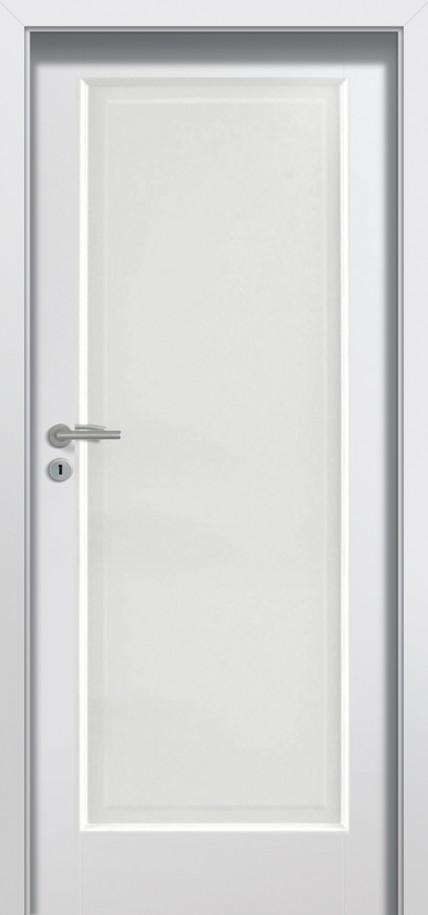

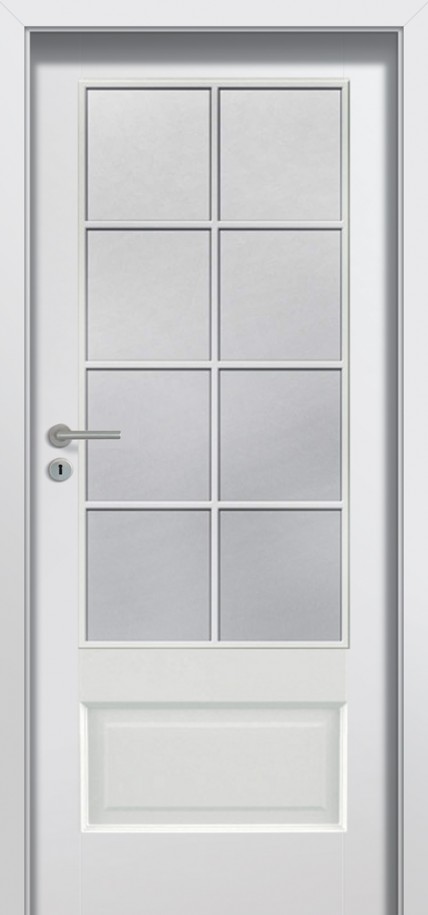

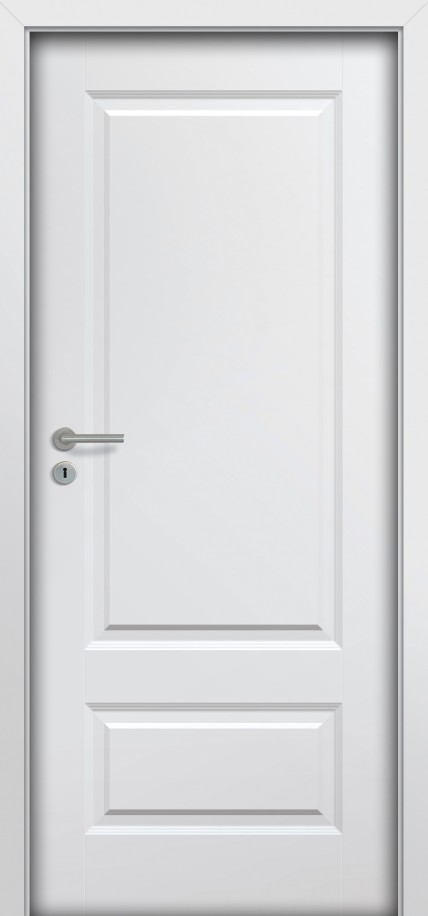

Modelos disponibles	V05, V8S10, V08, V5S8, V2S6, V02, V1S6, V01
Acabados	PAINTED
Colores	c91, c441, c440, c438, c437, c436, c435, c439, c433, c434, c432, c431, c429, c425, c424, c423, c421, c420, c419, c417, c415, c413, c410, c409, c298, c299, c300, c426, c408, c375, c376, c374, c406, c405, c373, c372, c404, c403, c371, c407
